產品特點
Product Feature
◆ 卓越的性能
PRODUCT OVERVIEW
★ ADD系列軸流風機具有可靠的性能和耐久力，適用于民用，公共建筑，廠房等建筑的送排風，同時該系列經國家權威部門認可可以用于消費排煙。
Model AS axial flow fans are important part of products.They have excellent Performance and workmanship ,
are suitable for laange commercial building supply and exhaust application.TheseFans are approved for smoke removal
duty by China authorities.
★工作范圍：最大風量可達120000m3/h，靜壓高達850Pa；
Volume up to:120000 M3/H,Static Pressure:up to 850Pa.
★平衡等級：平衡等級高達G2.5（ISO-1940）
Balancing Level as high as G2.5(ISO.1940).
◆ 用途:
USAGE:
★用于高層建筑的送排風
For buliding general supply/exhaust ventilation
★可用于消防排煙或正壓送風
For emergency smoke removal or positive pressure supply duty application
★車庫、地鐵及隧道的排煙
Underground parking ,subway and tunnel smoke removal
★可用于廚房的排油煙
For kitchen grease exhaust application

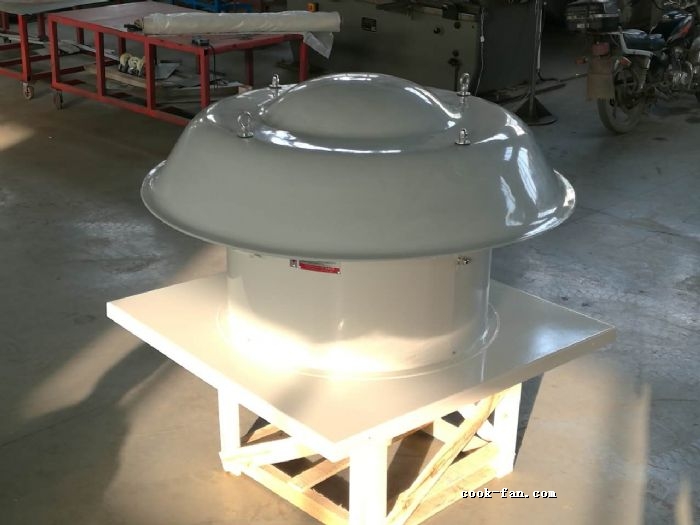

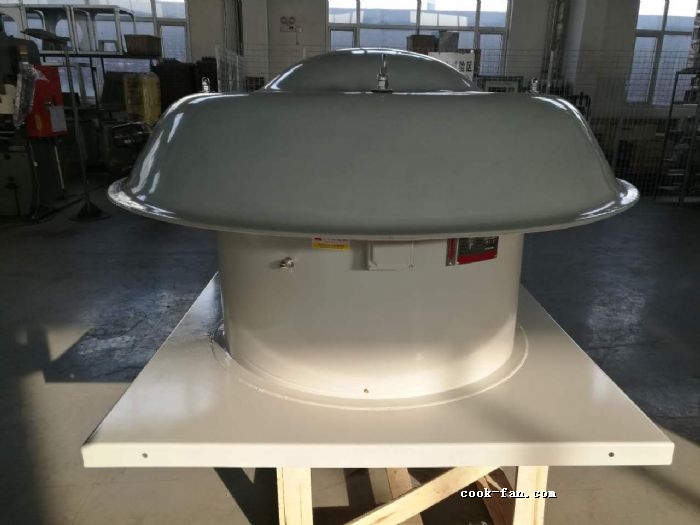

★配置泛水帽及防雨罩作為屋頂風機或屋頂排煙風機
For roof supply and (smoke)exhaust application when equipped with roof curb cap and weather hood.
◆ ADD的認證
Complied certificates and regulations
★ADD風機經國家固定滅火系統和耐火構件質量監督檢測中心，按《一般用途軸流通風機技術條件》檢驗，常規性能符合要求：按照《消防排煙風機耐高溫試驗方法》檢驗，在主風道溫度達280攝氏度時連續運行30分鐘以上，符合耐高溫性能要求，檢驗合格。
ADD fans are tested by “China National Fixed Fire Fighting System and fire Resistant Components Quality Inspection and Testing Center.”The fan typical performance is approved complying with the “Ceneral Usage Axial Fan Technical Specification”(China Nation Standard GB/T 13274-91).The fans are also tested According to China Standard GA211-1999”Fire Fighting Smoke Removal Fan
High Temperature Testing Method “.run continuously over 30 minutes when the Main duct air temperature is 280c .The high temperature resistance character is qualified (Certificate No:2004-0924).
★ADD風機符合國際《汽車庫，修車庫，停車庫設計防火規范》的要求，可用于上述場合的排煙和通風使用作為兩用風機。
ADD fans comply with China Nation Standard GB50067-97(“Codes of Fire Fighting Design of Garage/Carrepairing facilities/parking warehouse”)
